Batter Through Doors

Batter Through Doors

High impact design for automated traffic

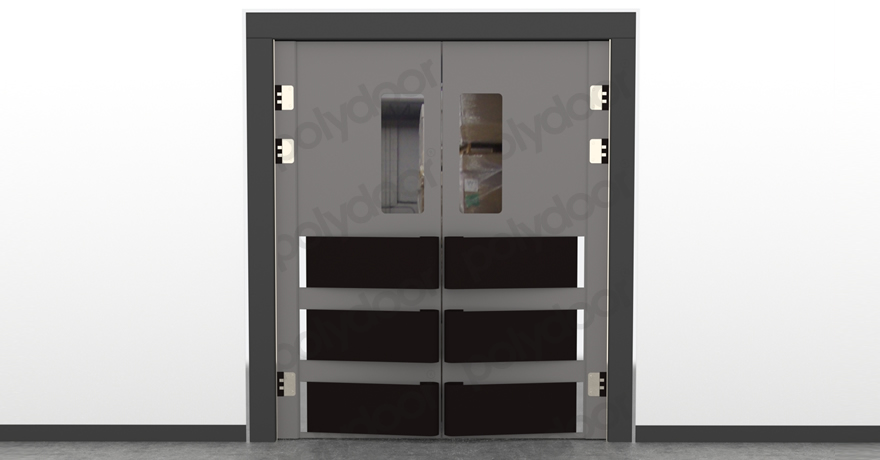

Batter through doors images

The Speedflex range of industrial crash doors are the ideal solution for all industrial traffic applications. Each door can be purposely engineered to withstand impact in the toughest of environments. This tough industrial swing door is purposely designed for areas where palletised traffic is in constant use. Vision panels can be introduced to ensure a safe operating passage is detectable.

Speedflex are the only UK leading manufacturer of polyethylene industrial traffic doors. The use of a specific high grade polyethylene material ensures our range of industrial traffic doors are the most robust available. The Speedflex industrial traffic range has been thoroughly tested in the toughest industrial traffic environments and is therefore an ideal solution to any industrial traffic door needs.

Each Speedflex industrial traffic door is manufactured using a stainless steel hinge system with a fully adjustable tension feature. This allows each door to be individually tailored to suit the application.

All Speedflex polyethylene doors are designed to eliminate common problems associated with older style crash doors including cracking and splitting. This problem is eliminated by incorporating the latest high quality high molecular weight material into all of our door products.

Our constant development process and dedication into using the highest quality components and materials ensures our position as the UK’s leading PE impact and traffic door manufacturer.

Our expert design engineering service allows Speedflex to offer a bespoke manufacturing service on all polyethylene doors. Each polyethylene door can be manufactured using almost any colour as well as a variety of window shapes and finishes.

The Speedflex industrial traffic range offers both the polyethylene and teardrop bumper system. These bumpers are positioned in accordance to the impact position of the passing traffic. Customers can choose to include either or both types of bumper systems on their door. Customers can also choose between either a full length stainless steel or aluminium fixing spine. These fixing spines are pre-drilled therefore making installation that much easier.

Utilising the very latest material technology, our virtually maintenance free industrial traffic door range can be easily cleaned so that the door maintains its original new appearance.

Technical Data

Spine Thickness 45mm
Blade Thickness 15mm
Blade Material HMW food safe polyethylene
Fixings Stainless steel
Mounting Options Full height aluminium (standard) / stainless steel spine (optional)
Operation Manual swing, dual action swing
Hinges Full stainless steel hinge, fixings & spring system
Hinge Operation Hold open (optional) or automatic return (standard)
Closing Force Fully adjustable NM force via compression spring system
Safety Features Leading edge & door jamb anti-finger trap system
Window System Upper 15mm clear acrylic upper vision panel as standard.
DDA Window System Optional lower DDA window (see window options below)
Waterproof Yes
Washable Yes
Chemical Resistant Yes
Food Safe Yes
Single Doors Maximum Width 1350mm
Double Doors Maximum Width 2800mm
Maximum Height 3000mm

Food Safe CNC Bumpers
Food safe impact bumpers CNC machined to any shape and size. Colour co-ordinated to offer visual area detection and risk identity, ideal for hygiene applications.

Teardrop Bumpers
Black drape formed teardrop spring style bumpers in black pinseal and leather grain finish. Spring profile reduces noise but can reduce opening width due to bumper profile.

traffic door window options
Upper Windows Width from 250-400, height from 300 to 800, please enquire.
DDA Lower Windows 200mm x 300mm
Window Shapes Rectangular (standard) / other shapes optional, please enquire
Window Vision Clear (standard) / optional frosted and colour acrylic, please enquire

Speedflex swing doors are available in any RAL colour. Unlike any other type of material our doors are constructed using a specialist grade HMW material, this is a solid dense panel which has no surface coating. Unlike some coated surfaces that ‘chip’ and may leave harmful materials exposed, our swing doors are a solid construction with the same colour and material through the total material thickness.

Many parts of our doors including bumper strips can be manufactured in similar or contrasting colours to match almost any architectural or corporate colour schemes. Our swing door range is also available with marble & granite effects allowing customers the chance to be creative with the design of each door.

The ability to select a range of finishes and options help ensure integration into existing corporate identity colour schemes. Similarly each door can be designed to incorporate a wide range of coloured window options and various surface finishes. For a more detailed specification and a very competitive quotation please get in touch using the contact page of this website. (some colours may be subject to minimum order quantities)

Please visit our downloads section for technical information on this product.
